What are the icons on the NUNAV Courier web application?

The NUNAV Courier web application is the tool for scheduling your tours and routes. Here you can see all the information and the current status.
To keep everything nice and clear, we decided to use as little text as possible and to approach the display with the help of icons. This has two advantages, because besides simplicity, another feature makes them unbeatable: They work universally, so in most cases they are independent of language and culture.

To give you an overview of which symbols we use in the NUNAV Courier web application and what they mean, you will find a list below.
For a better overview, we have broken down the individual areas and thus go into more and more detail.

• Navigation menu
• Tour overview
• Stop overview
• Detail view of the stop

Navigation menu

The navigation menu can be found on the left side of the screen. Here you navigate to the different functions and data tables of NUNAV Courier.

Icon	Name	Explanation
	Map view	This icon takes you to the map view and allows you to access your tours.
	Import data	Opens the data upload so that you can import your data.
	Planning assistant	Here you can access the planning assistant. This function is not available to all users.
	Connected devices	This icon takes you to the device management. Here you can register devices, delete them or check when they last used the Courier app.
	Vehicles
	Drivers
	Orders
	Shipments

Tour overview

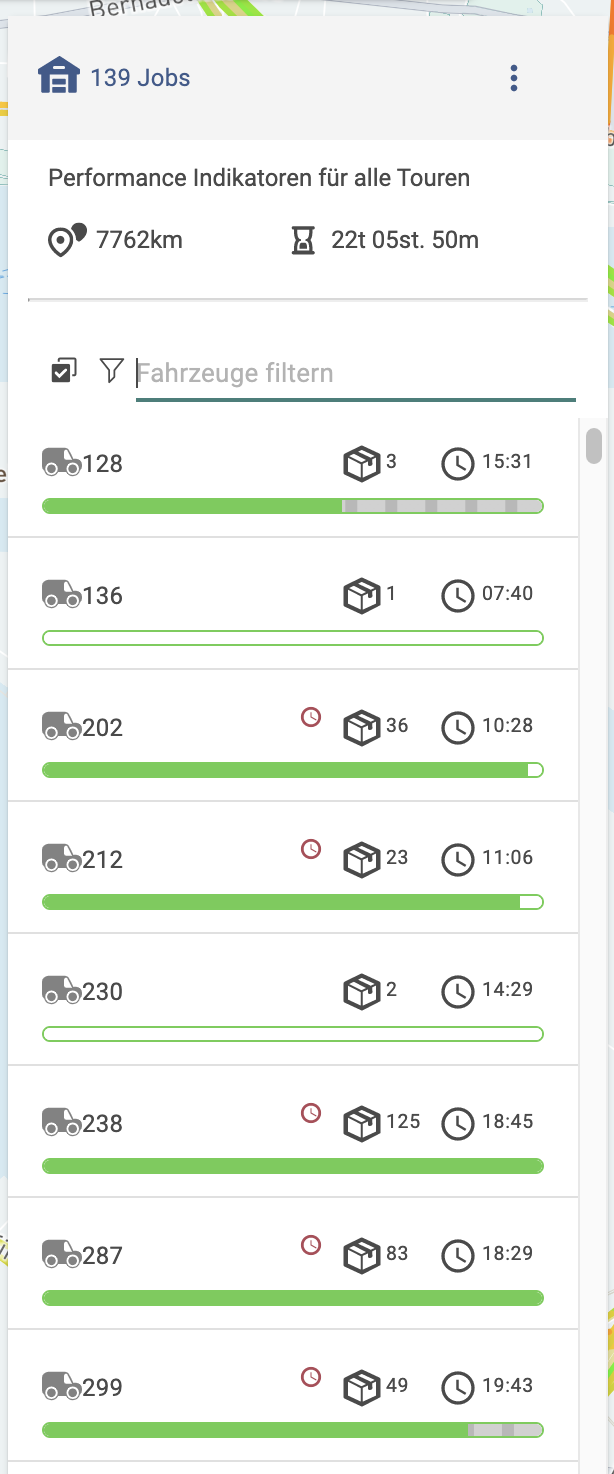

In the first column, which opens when you click on the map view, you can see the overview of the tours.

Icon	Name	Explanation
	Depot	Next to this symbol you will find the number of unscheduled jobs. These are jobs that are not yet assigned to a vehicle or tour.
	Actions
	Distance	Here the total kilometers of all or the selected tours are displayed.
	Working time	Here the total working time of all or the selected tours is presented.
	Select all tours	All tours are selected and displayed in the routes on the map.
	Filter	Here you can filter for specific tours.
	Tour number & status	"The vehicle has no connection to NUNAV Courier".
	Tour number & status	"The vehicle is currently driving"
	Tour number & status	"The vehicle is currently making a delivery"
	Tour number & status	"The vehicle is in idle mode"
	Missed time slot	The red clock on a tour indicates that the tour will not reach at least one time slot on time.
	Number

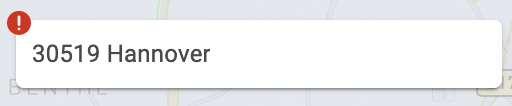

	Geocoding error	At least one order on the tour has a geocoding error. The position of at least one stop is therefore inaccurate.
	Arrival time	The estimated arrival time of the tour at the end point appears next to the gray clock.

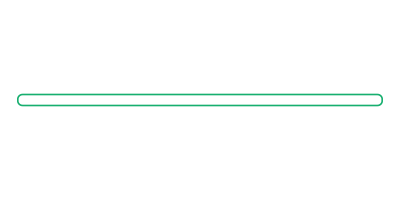

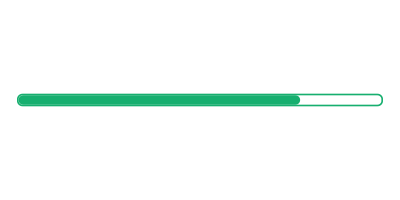

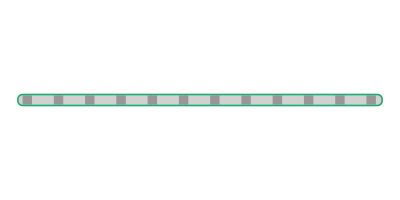

	Progress bar	The progress bar allows you to see at a glance what percentage of the tour has been completed. There are three representations: empty bar - tour planned but not started running bar - tour with NUNAV Courier on the way, progress can be seen by the green fill level green bar - tour underway, but not using NUNAV Courier, progress indicated by green fill level

Stop overview

Header data

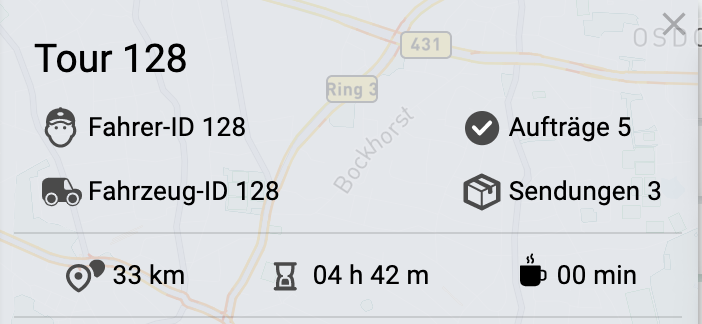

Above the stops you will find a summary of the most important key data of the tour.

Icon	Name	Explanation
	Name of the tour
	Name or ID of the driver
	Name or ID of the vehicle
	Number of orders
	Number of shipments
	Distance of the tour
	Working time of the tour
	Break

Tour data

Icon tour list	Map icon	Name	Explanation
		Tour start and end

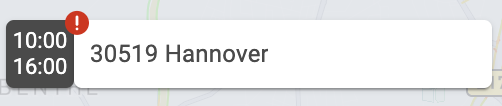

		Geocoding error red exclamation mark at stop	This stop is not geocoded correctly and therefore may be inaccurate. The address can be reworked in the stop detail data or by the driver to make it more accurate.
		Delivery open
		Pickup open
		Stop favored	Stop was manually selected by the driver to approach immediately. This action may have an effect on the order of the tour.
		Stop paused
		Stop completed
		Stop unscheduled	This stop was not scheduled in the tour.
		Time window	The time windows are displayed in different colors, depending on their punctuality: gray = on time gray with red border = a little bit late (the limit is to be defined individually, default is 5 - 15 minutes) red = significantly late (more than the limit, default is more than 15 minutes)
		Time slot just missed
		time window missed
		Opening hours	The symbol indicates whether opening hours are stored for this stop. It is possible to store additional information for a stop in the NUNAV Courier app. More information: How do I store opening hours at a stop?

Detailed view of the stop

The detailed view of the stop is divided into two areas:

• Order info
• Shipment info

Symbol	Name	Explanation
Order info
	Address
	Delivery
	Collection
	Delivery & Collection
	Time window
	Service time
	Tracking ID
	Vehicle Restrictions
	Driver Restrictions
Shipment info
	Recipient
	Shipper
	Weight
	Volume
	Quantity
	Barcode
	Address
