How do I create traffic scenarios for my event?

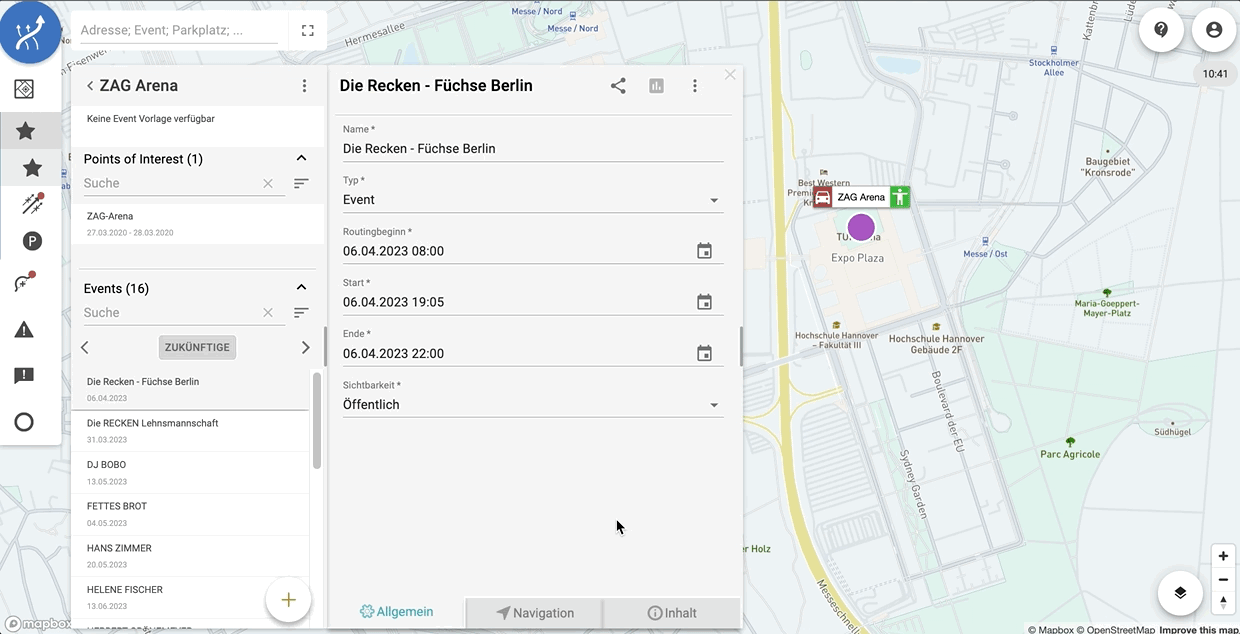

1. Access Scenario Configuration

A new scenario is created under the "Navigation" control element.

2. Configure Scenario

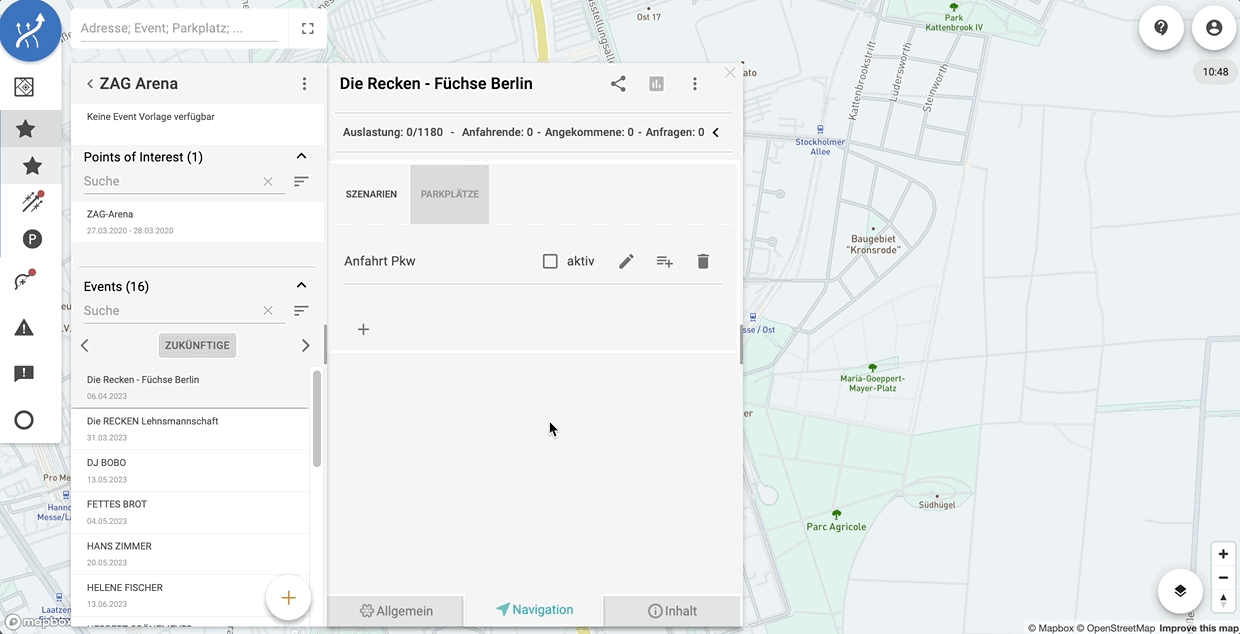

Multiple corridor configurations can now be assigned to the scenario. To do this, click the list icon.

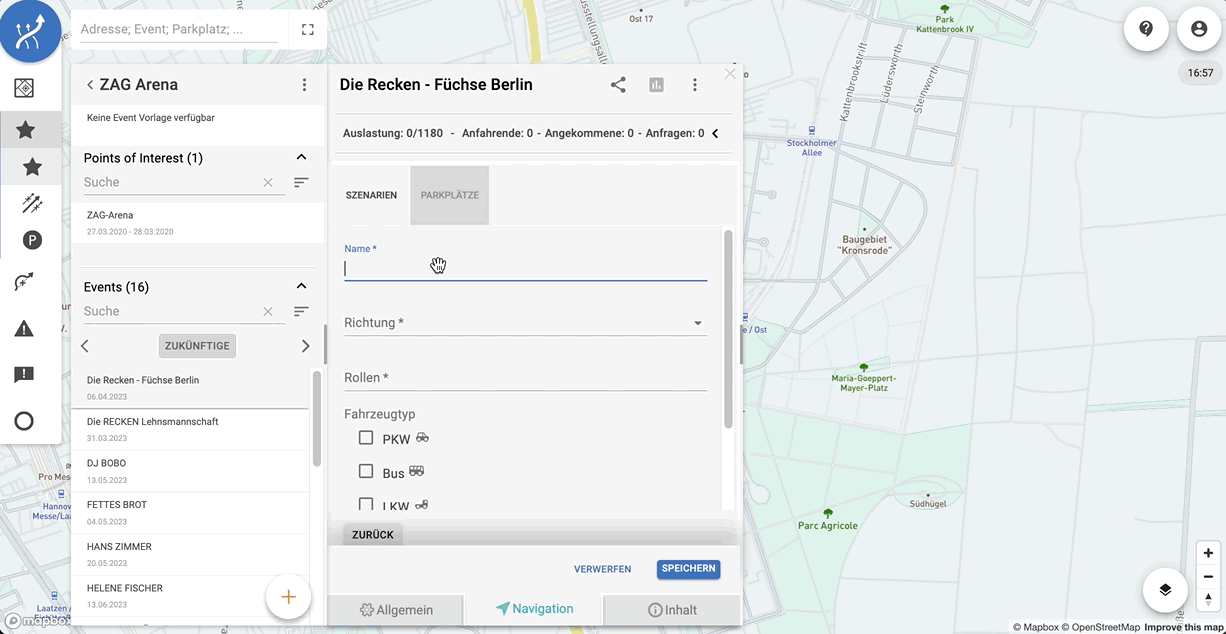

The following settings can then be made:

• "Name": The name of the corridor configuration
• "Direction": It can be set to Incoming, Outgoing, or Both directions
• "Role": Enter the user role for which the corresponding corridor should apply
• "Vehicle Type": Vehicle type assigned to a user role. It may make sense to make the same setting that was already made for the parking spaces in the user role configuration.
• "Corridors": Select a corridor from the list of already created corridors. Multiple corridors can be selected.

Important Note: The scenario is only active when the box to the left of "active" is checked.
